Culvert QC – Aggregate Grading
Culvert QC Aggregate Grading Test Report Excel is a complete, ready-to-use documentation sheet developed specifically for aggregate grading quality control in culvert construction projects. This professionally structured QC format helps site engineers, contractors and consultants record and verify all aggregate grading results without formatting errors, manual calculations or skipped checkpoints — ensuring smooth approval during inspections and technical audits.
Aggregates form the skeleton and load-carrying structure of culvert concrete, significantly influencing strength, durability, permeability, shrinkage resistance and long-term performance. Improper grading can lead to honeycombing, segregation, excess voids, poor compaction and reduced strength. This QC sheet ensures every performance-critical grading parameter of both coarse and fine aggregates is accurately measured and traceably documented — improving mix design reliability and execution quality.
📌 Key Grading Records Covered in the Culvert Aggregate QC Excel
The sheet includes the required grading formats for:

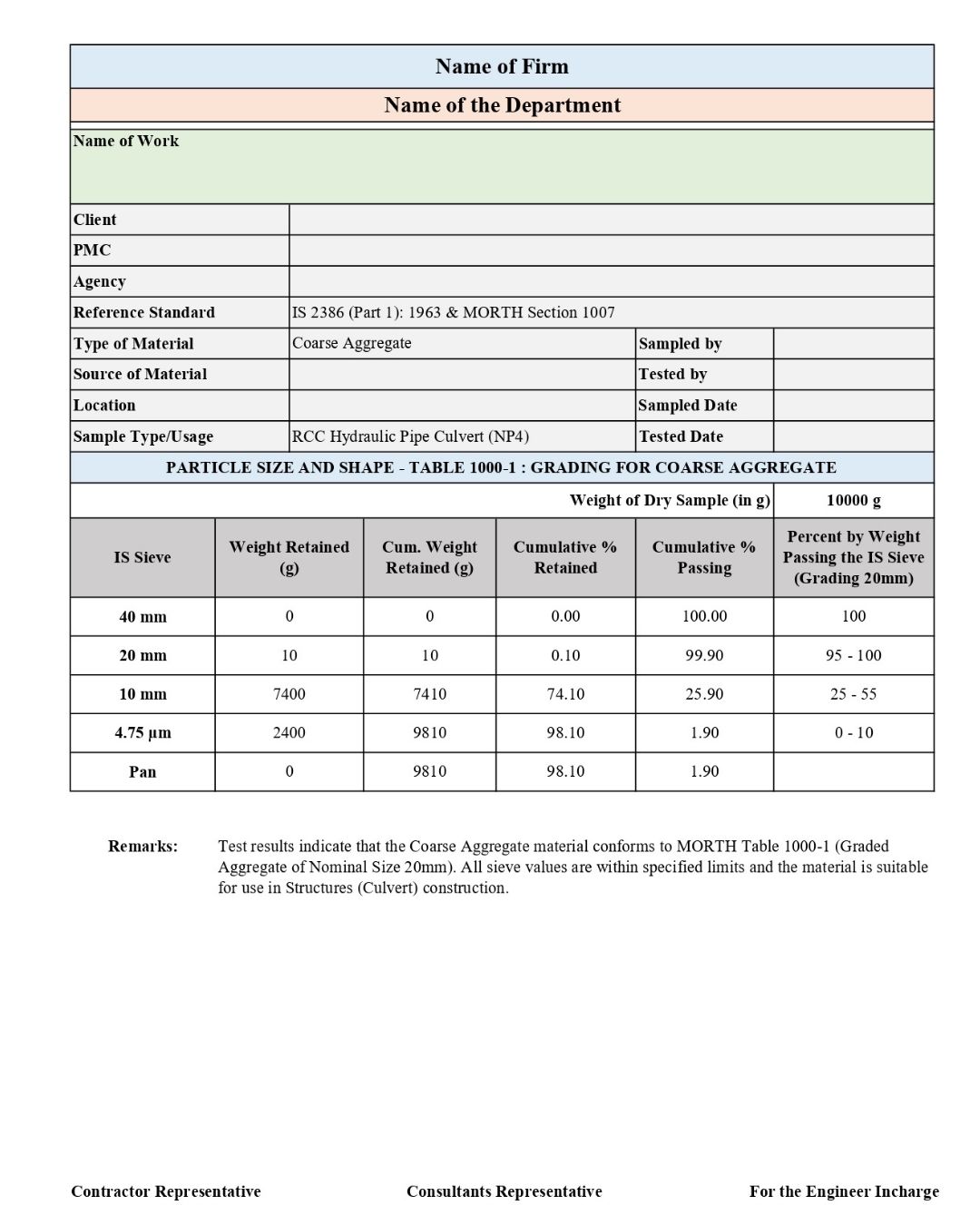

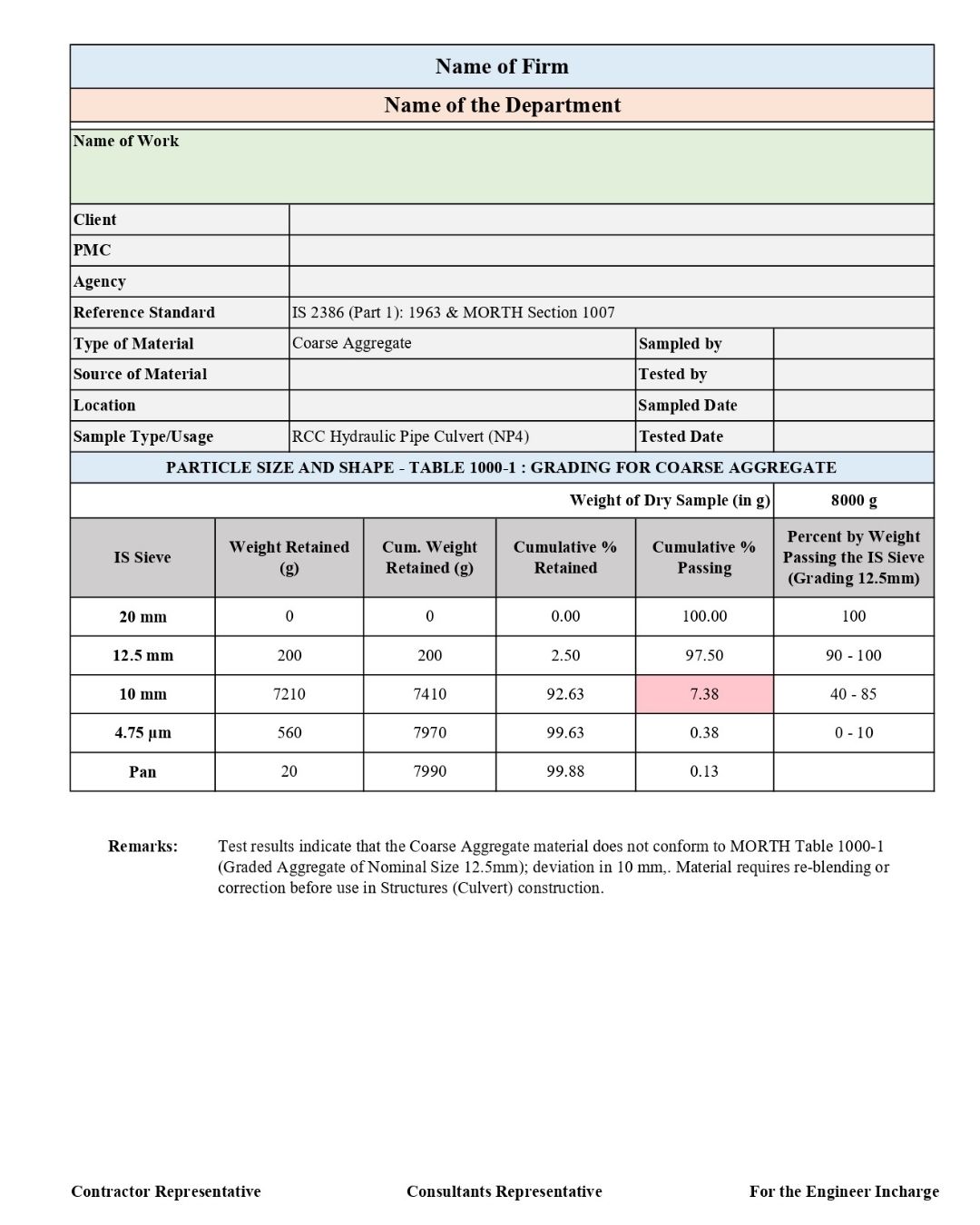

✔ Coarse Aggregate Grading — 40 mm
✔ Coarse Aggregate Grading — 20 mm
✔ Coarse Aggregate Grading — 12.5 mm
✔ Fine Aggregate Grading — Zone I

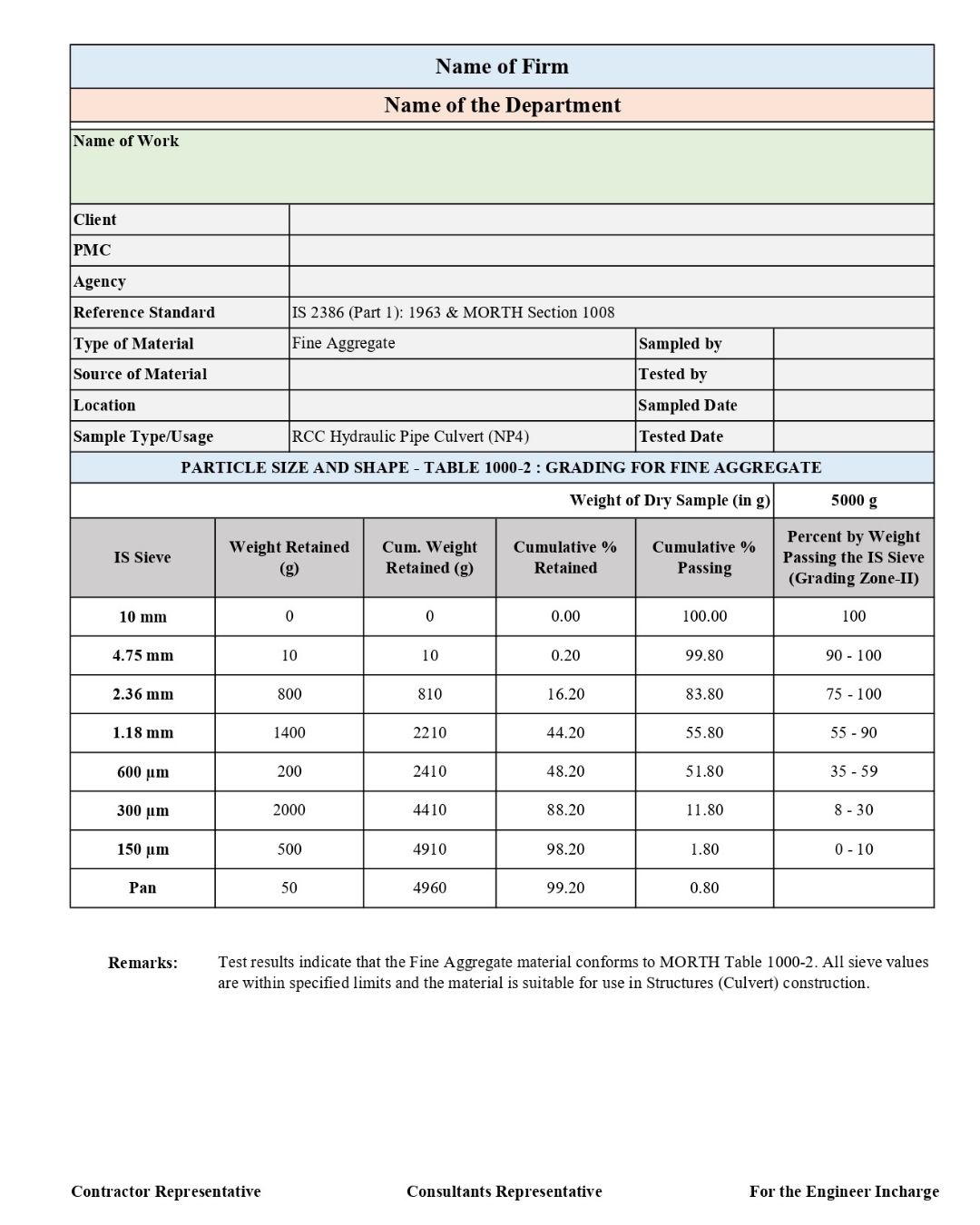

✔ Fine Aggregate Grading — Zone II
✔ Fine Aggregate Grading — Zone III
All formats are pre-designed with sieve size tables, cumulative passing %, zone comparison and remarks — enabling engineers to instantly generate a clean, consultant-friendly and audit-ready grading report.
🧾 Compliance and Standards
The Culvert Aggregate QC sheet aligns with:
🔹 IRC Guidelines for Culvert and Bridge Concrete Work
🔹 MORTH – Specifications for Concrete Materials
🔹 Relevant IS Codes for Aggregate Grading (IS 383, IS 2386 Series)
This ensures seamless acceptance during:
• PMC / Authority Engineer inspections
• Third-Party Quality audits
• Client / Concessionaire reviews
• Running bill (RA bill) submissions
🚀 Who can use this Culvert Aggregate QC Excel
• Culvert construction contractors
• QC / QA engineers
• Concrete batching plant & laboratory teams
• PMC / Authority engineers
• Third-party inspection agencies
• DPR / Design consultants
• Government and private clients
• Civil engineering students for concrete QA/QC training
🎯 Benefits of using this Culvert Aggregate Grading QC Sheet
✔ Ready-to-use QC format — no manual formatting required
✔ Ensures no sieve or grading checkpoint is missed
✔ Professional, consultant-approved and audit-ready layout
✔ Fully compliant with IRC / MORTH / IS guidelines
✔ Eliminates calculation and documentation errors
✔ Helps accelerate RA bill approvals and reduce site-level disputes
Version Type
| Version | Details |
|---|---|
| Basic | Empty Excel — manual entry version |
| Standard | Excel with formulas — Auto-Calculation, Notes & Auto Remarks |
| Premium | Includes both Basic + Standard files |
Download Information
After purchase, the file becomes available for instant download.
The download link remains active for 14 days, allowing easy access and backup.
Once downloaded, the file can be used for lifetime without any restrictions and works smoothly on laptops, mobiles and tablets using any Excel-supported application.
