Subgrade Test
Road QC Subgrade Test Report Excel is a complete, ready-to-use documentation sheet designed exclusively for Subgrade quality control in highway and road projects. This professionally developed QC format enables site engineers, contractors and consultants to record and verify all mandatory laboratory and field test results without manual formatting, calculation errors or skipped checkpoints — ensuring smooth approval during inspections and technical audits.
Subgrade is the compacted natural soil layer that forms the foundation of the pavement system, directly supporting all granular and bituminous layers above it. Its strength, stiffness and moisture behavior determine the long-term performance of the entire road structure. Any deviation in plasticity, moisture content, compaction, dry density or CBR strength can result in differential settlement, pavement cracking and premature surface failures. This Subgrade QC sheet ensures every performance-critical parameter is accurately measured and documented, preventing structural weaknesses from progressing into the upper pavement layers.
📌 Key Tests Covered in the Subgrade QC Excel
The sheet includes the complete set of essential Subgrade QC testing formats, including:

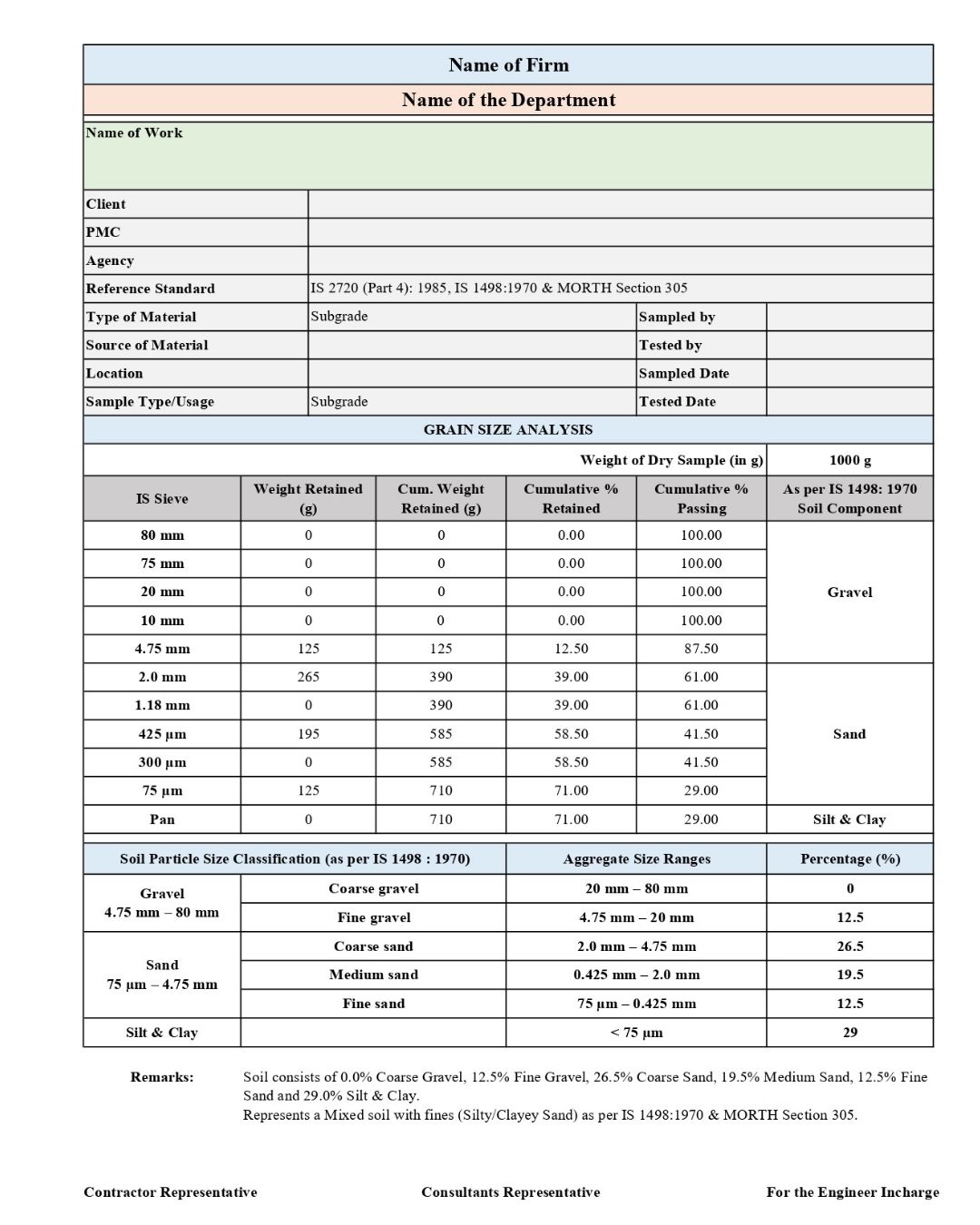

✔ Grain Size Analysis

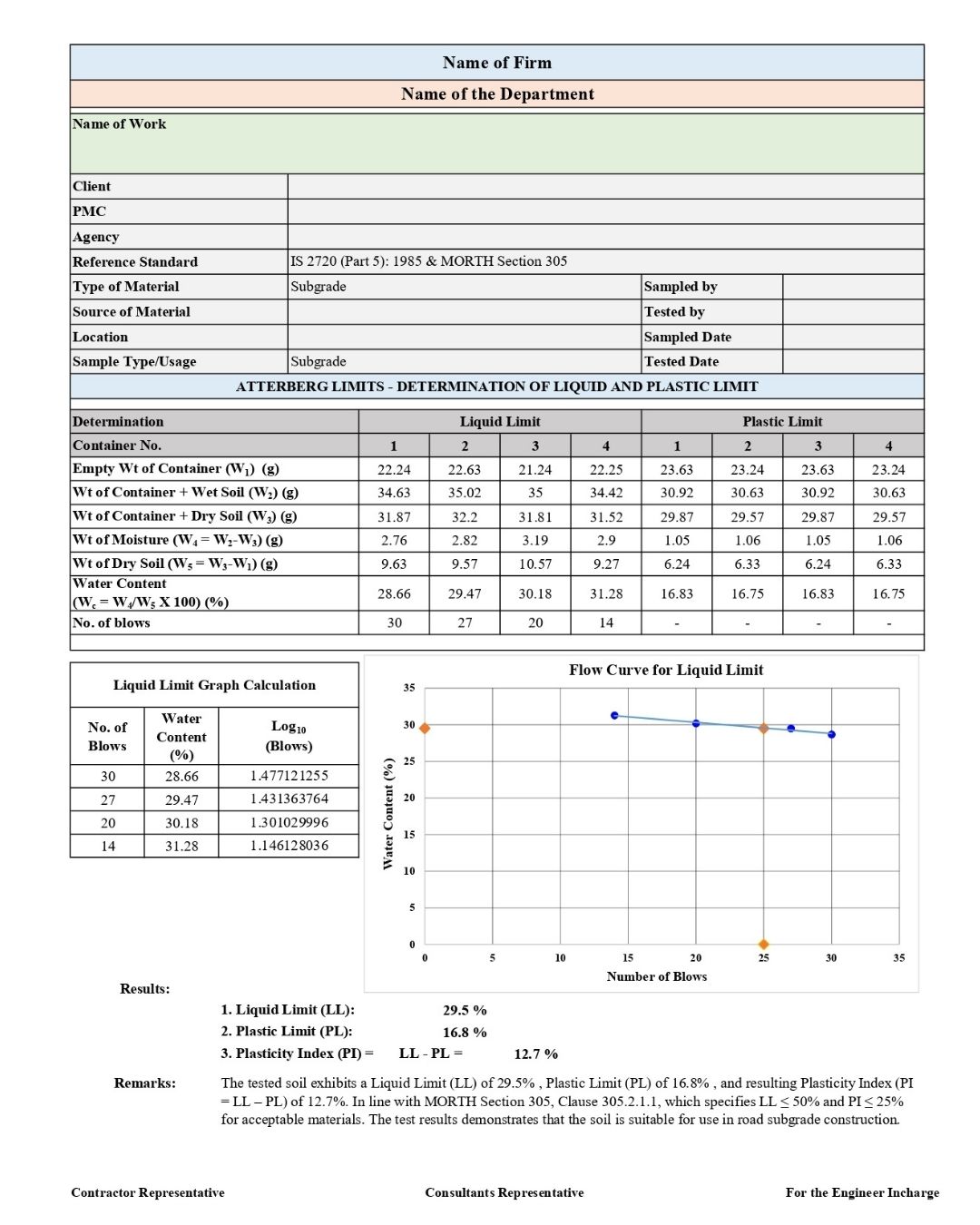

✔ Atterberg Limits

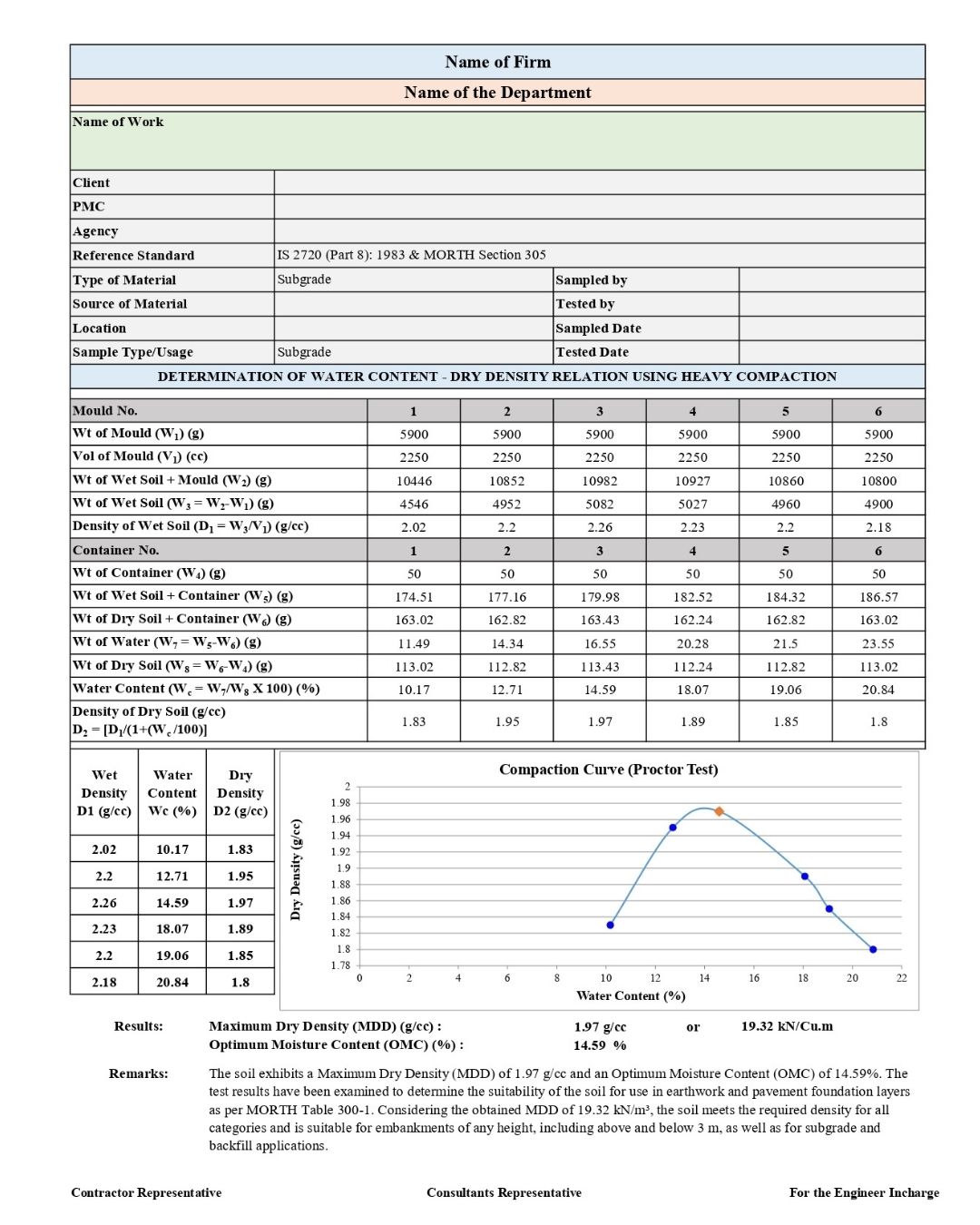

✔ Proctor Test

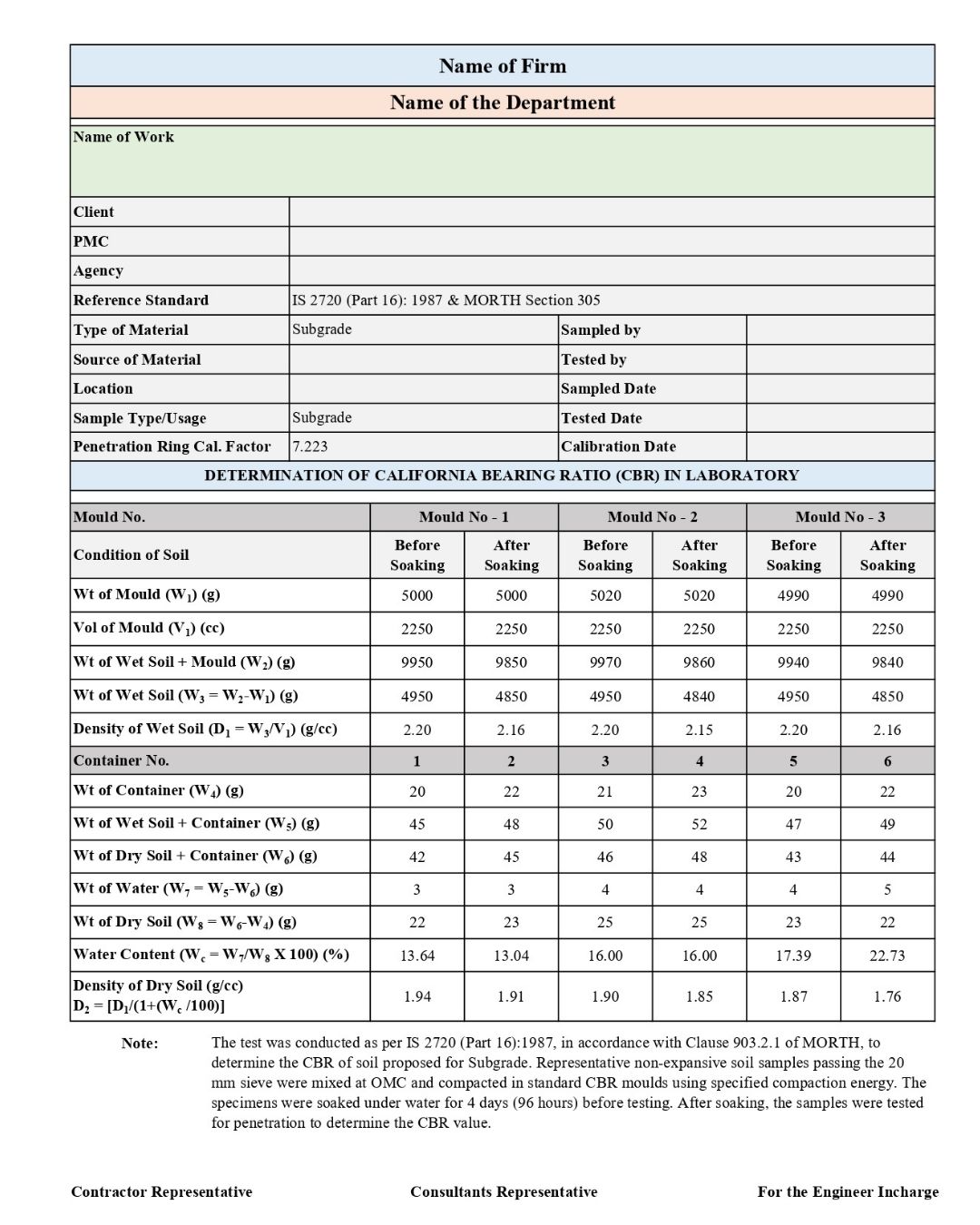

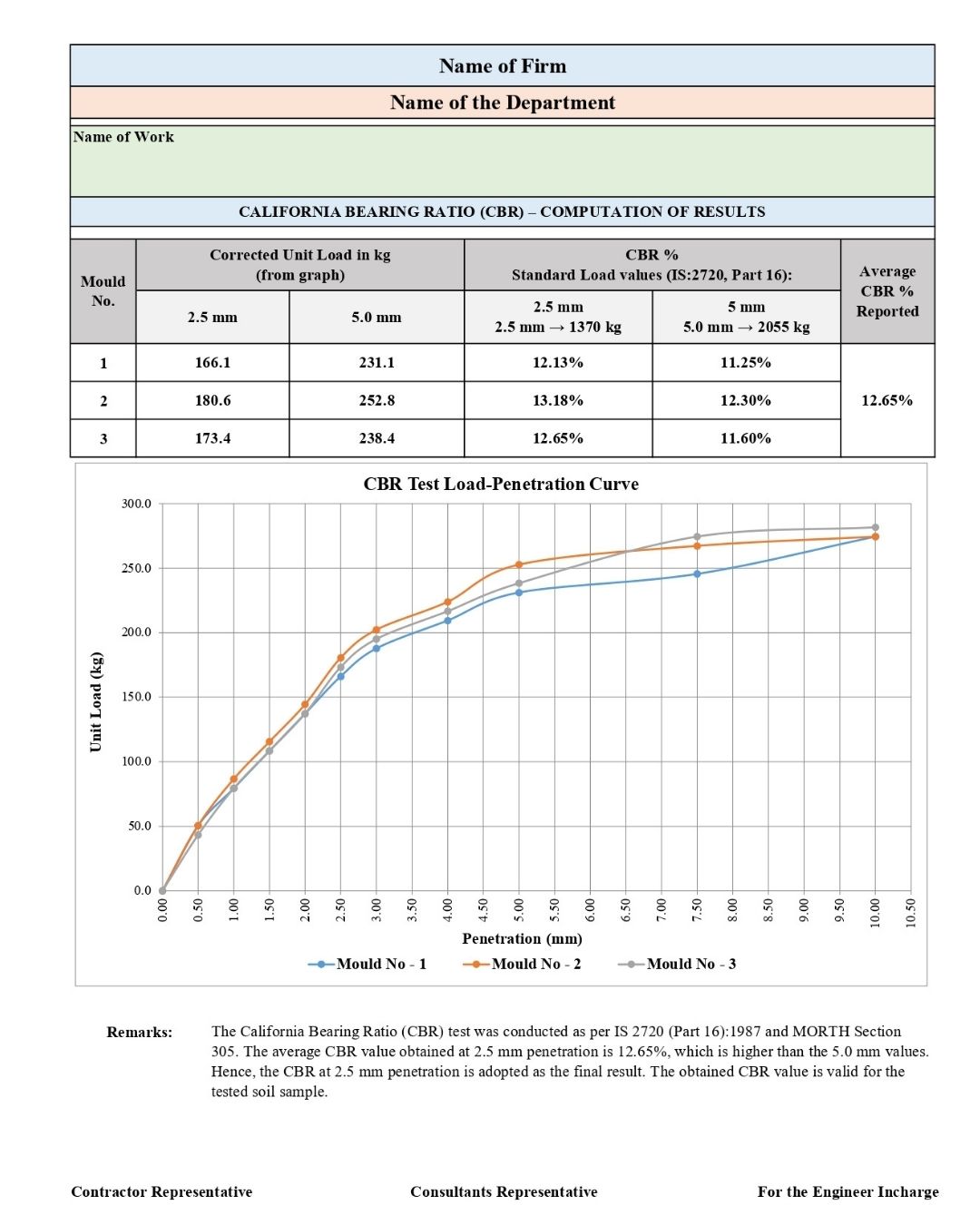

✔ California Bearing Ratio (CBR)

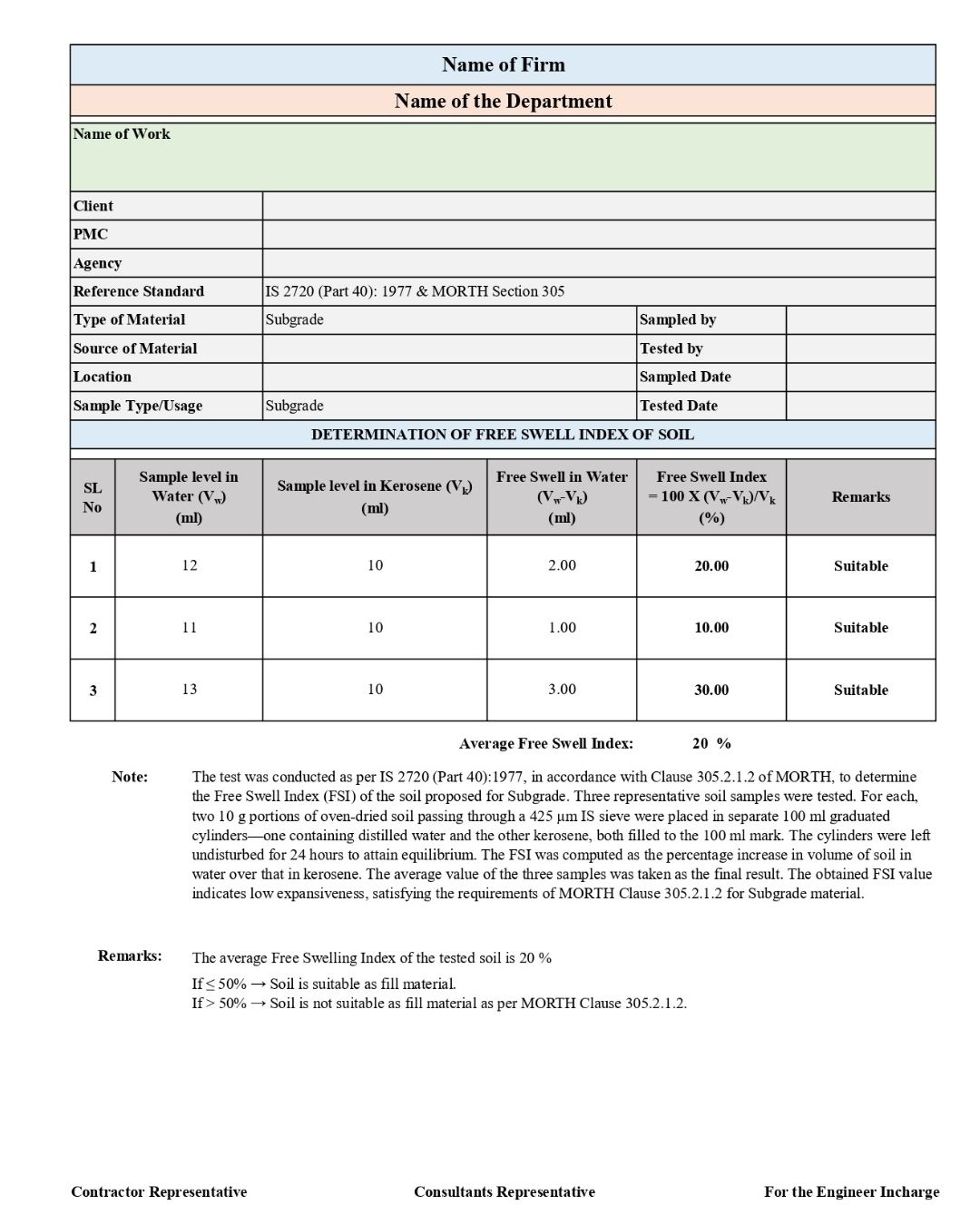

✔ Free Swell Index

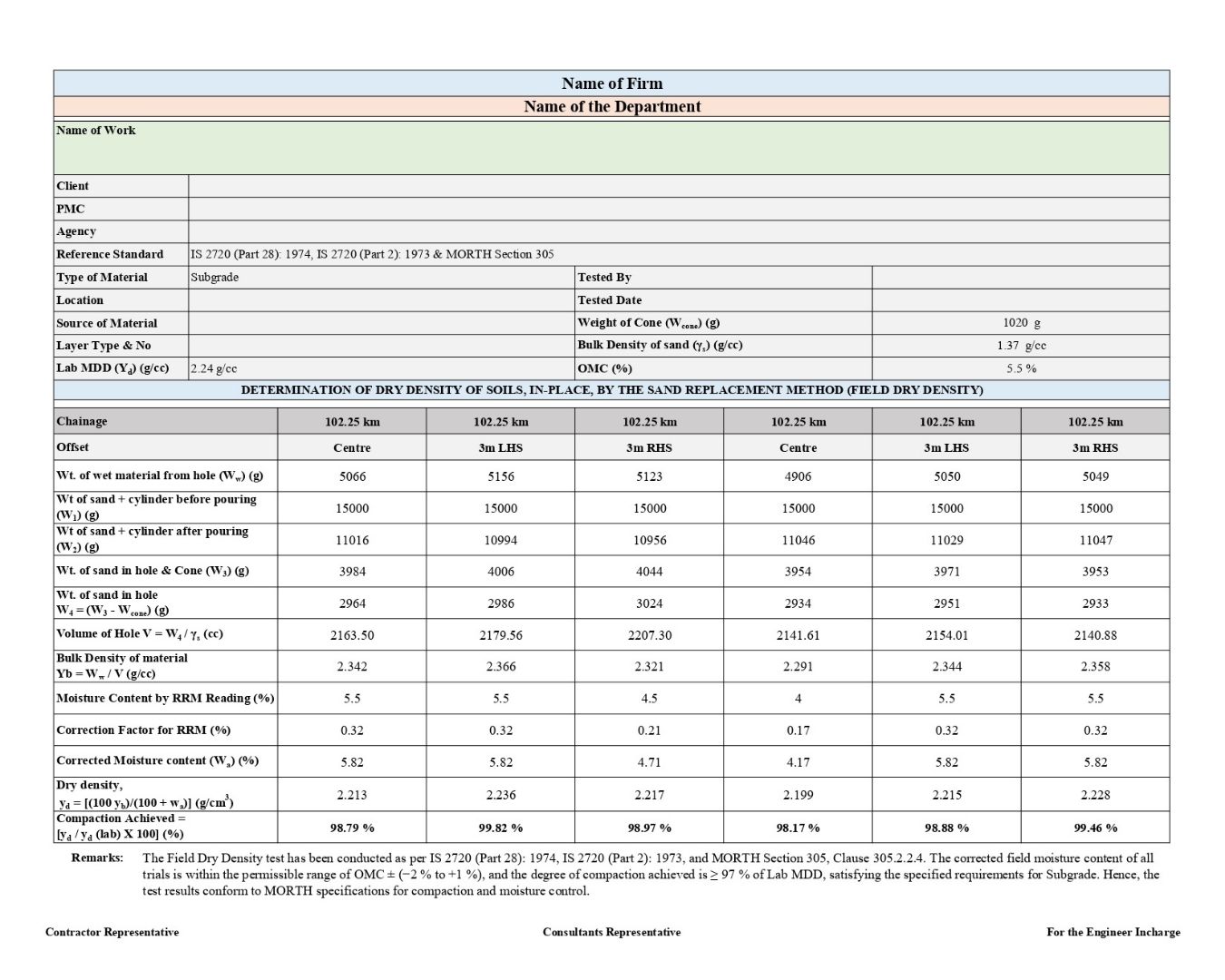

✔ Field Dry Density ( Sand Replacement Method)
Every sheet is pre-formatted, allowing engineers to simply enter data and instantly generate a clean, consultant-friendly and audit-ready QC report.
🧾 Compliance and Standards
The Subgrade QC sheet aligns with:
🔹 MORTH – Specifications for Road & Bridge Works
🔹 IRC Guidelines for Earthwork & Pavement Design
🔹 Relevant IS Codes for soil testing
This ensures smooth acceptance during:
• PMC / Authority Engineer inspections
• Third-Party Quality audits
• Client / Concessionaire reviews
• Running bill (RA bill) submissions
🚀 Who can use this Subgrade QC Excel
This QC documentation tool is suitable for:
• Highway EPC contractors
• QC / QA engineers
• PMC / Authority engineers
• Third-party inspection agencies
• DPR / Design consultants
• Government and private clients
• Civil engineering students for soil testing and QC training
🎯 Benefits of using this Subgrade QC Sheet
✔ Ready-made QC test formats — zero manual formatting
✔ Ensures no material or field QC record is left out
✔ Neat, consultant-friendly and audit-friendly layout
✔ Fully compliant with MORTH / IRC testing requirements
✔ Eliminates calculation and documentation errors
✔ Supports faster RA bill verification and reduces site-level queries
Version Type
This product is available in three variations:
| Version | Details |
|---|---|
| Basic | Empty Excel — manual entry version |
| Standard | Excel with formulas — Auto-Calculation, Test Notes & Auto Remarks |
| Premium | Includes both Basic + Standard files |
Download Information
After purchase, the file becomes available for instant download.
The download link remains active for 14 days, allowing you to access and save the sheet conveniently.
Once downloaded, the file can be used for lifetime without restrictions and works smoothly on laptops, mobiles and tablets using any Excel-supported application.
Explore More QC Excel Templates
For Road, Building, Culvert, Drainage and other civil engineering QC documentation sheets, visit the Civatrix QC library:
🔗 https://civatrix.com/shop/
Reference Standards and Official Guidelines
📌 MORTH Specifications & Circulars
🔗 https://morth.nic.in
📌 BIS – IS Codes for Soil & Road Material Testing
🔗 https://standardsbis.bsbedge.com
Reviews
There are no reviews yet.
