Drainage QC Aggregate Grading Test Report Excel is a complete, ready-to-use documentation sheet designed exclusively for grading and particle size distribution quality control of aggregates used in drainage construction works. This professionally designed QC format helps site engineers, contractors and consultants record all grading test results in a clean, structured and audit-ready format without spending time on manual formatting, repeated calculations or missing required test checkpoints. With this sheet, approvals during inspections, billing submissions and technical evaluations become faster, smoother and more transparent.
Aggregates form the structural skeleton of drainage concrete and bedding layers, and their grading directly influences workability, strength, permeability, compaction behaviour, shrinkage resistance and long-term durability. If aggregates do not comply with required gradation limits, the mix may suffer from segregation, excessive voids, poor compaction, bleeding, honeycombing or surface scaling — leading to leakage, weakened system performance and long-term maintenance issues. The Drainage QC Aggregate Grading sheet ensures every type and size of aggregate used in drainage works is tested and documented with complete traceability, preventing disputes and ensuring consistent material quality across all work fronts.
This Excel format eliminates the need to rebuild grading tables for every laboratory or project. All sieve size tables, cumulative passing columns, zone comparison formats and remarks sections are already structured. Engineers can simply enter actual results, compare with permissible grading limits and instantly generate a consultant-friendly and audit-approved aggregate grading QC report. Whether used in project QC labs, government labs, batching plants or third-party verification labs, this format guarantees uniformity in reporting across all stages of construction.
📌 Key Grading Formats Covered in the Drainage Aggregate QC Excel

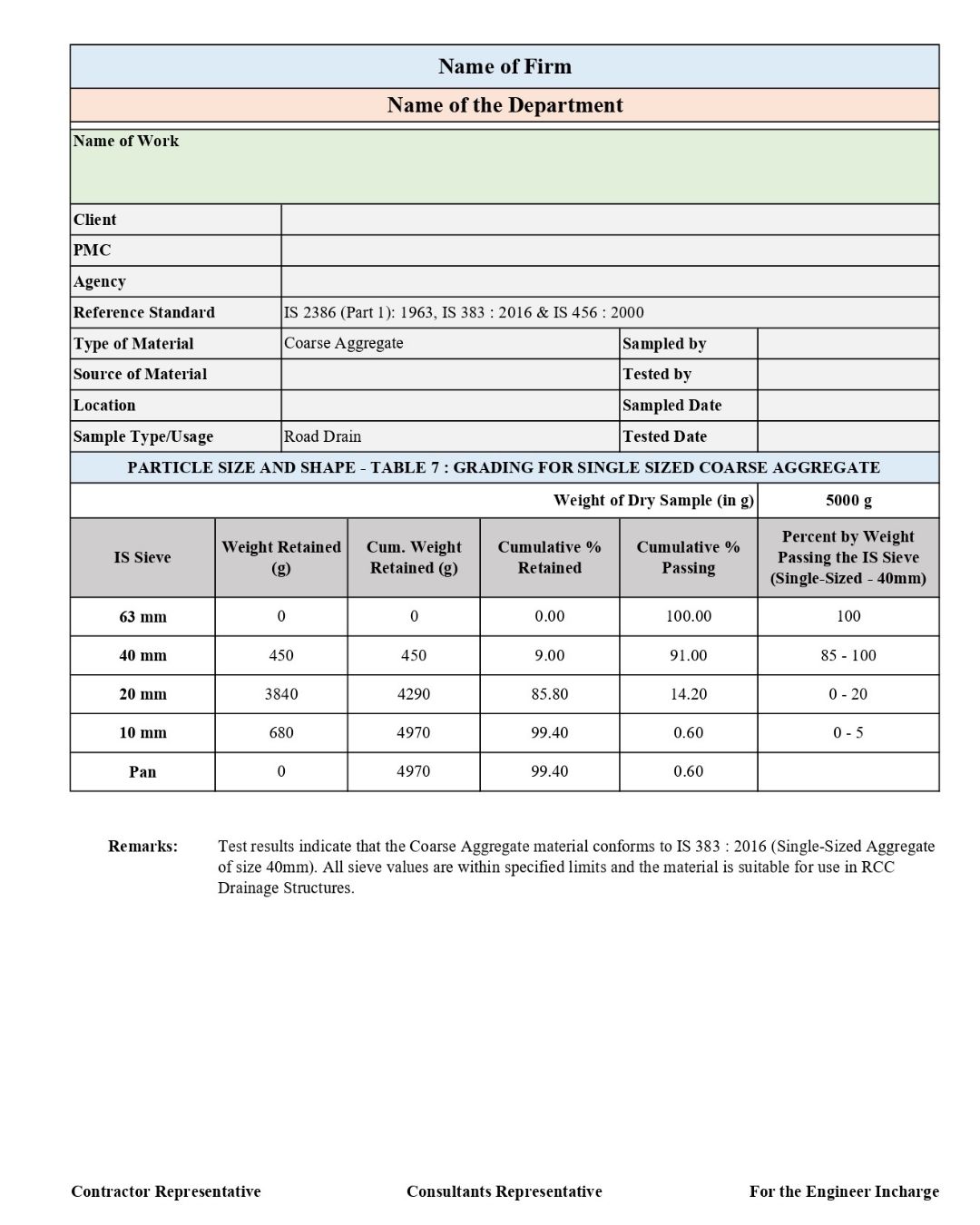

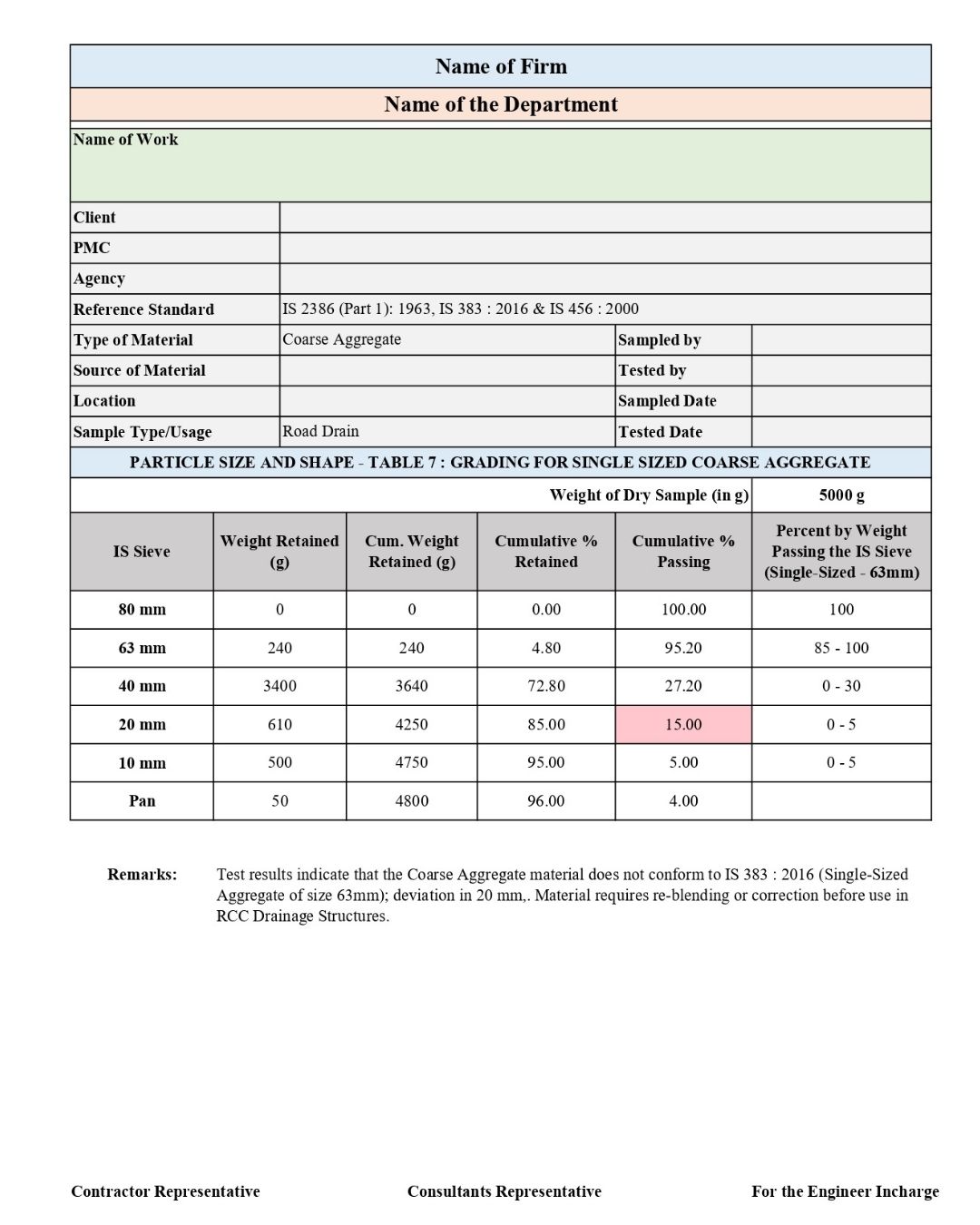

✔ Single-Sized Coarse Aggregate Grading — 63 mm, 40 mm, 20 mm, 16 mm, 12.5 mm & 10 mm

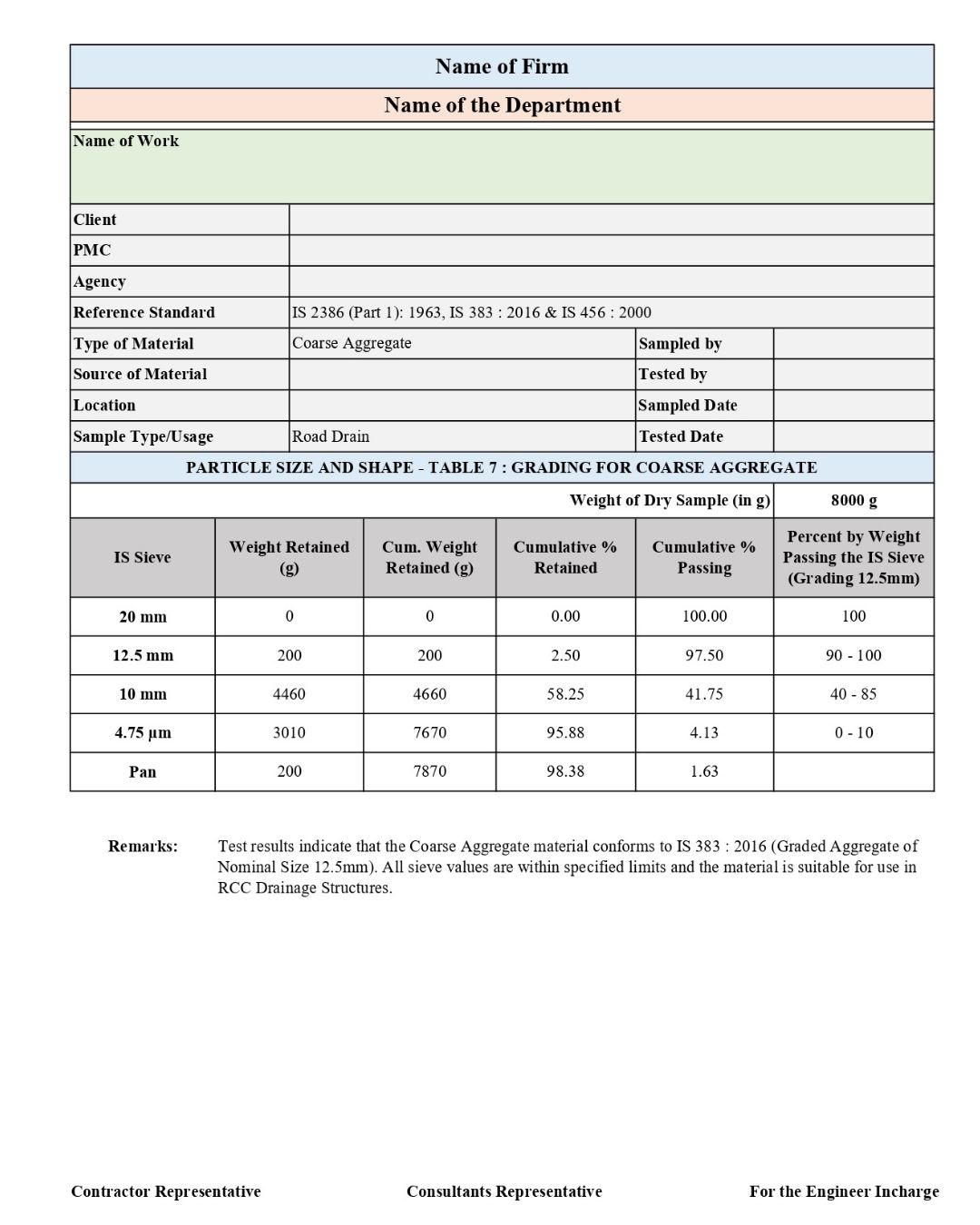

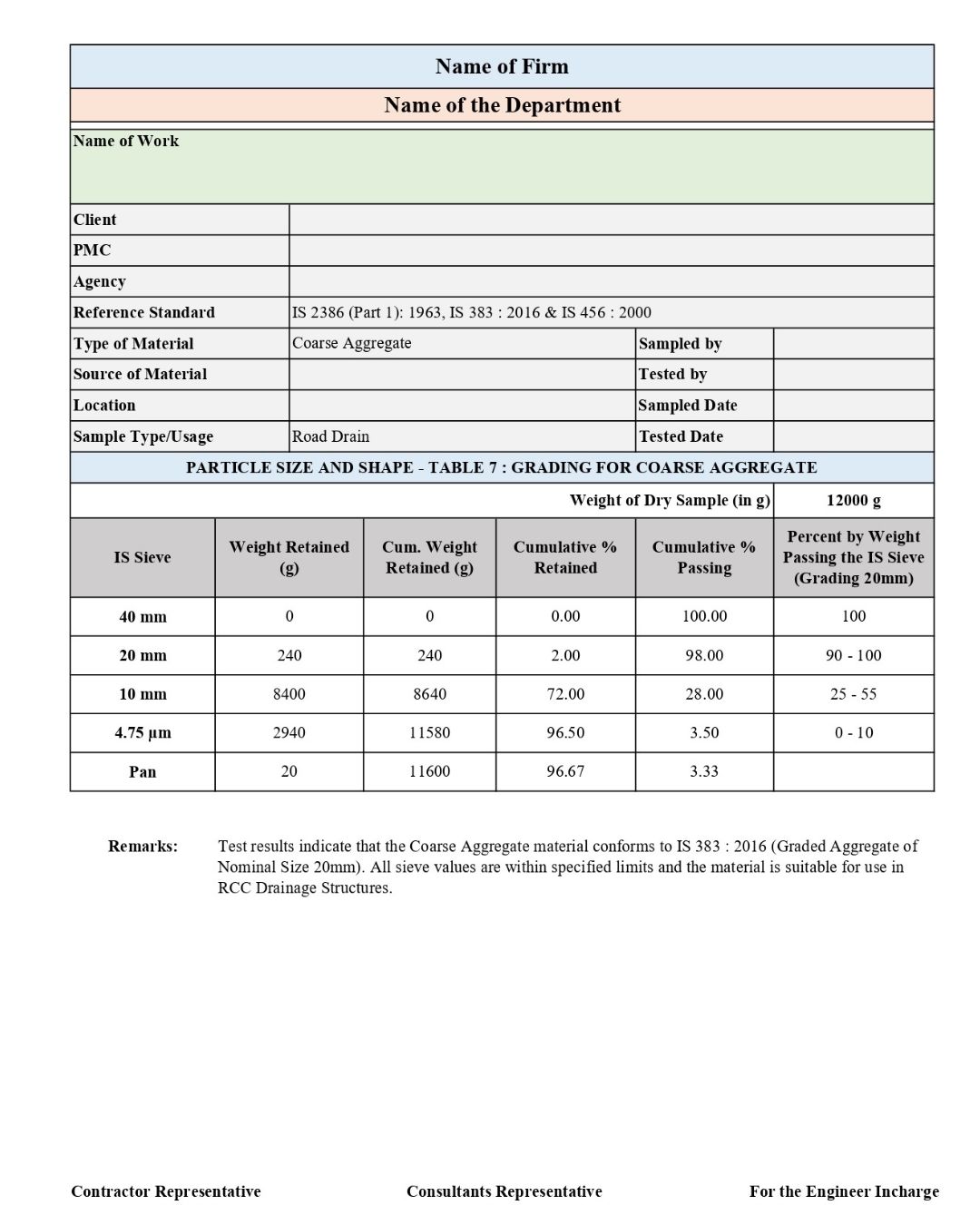

✔ Coarse Aggregate Grading — 40 mm, 20 mm, 16 mm & 12.5 mm

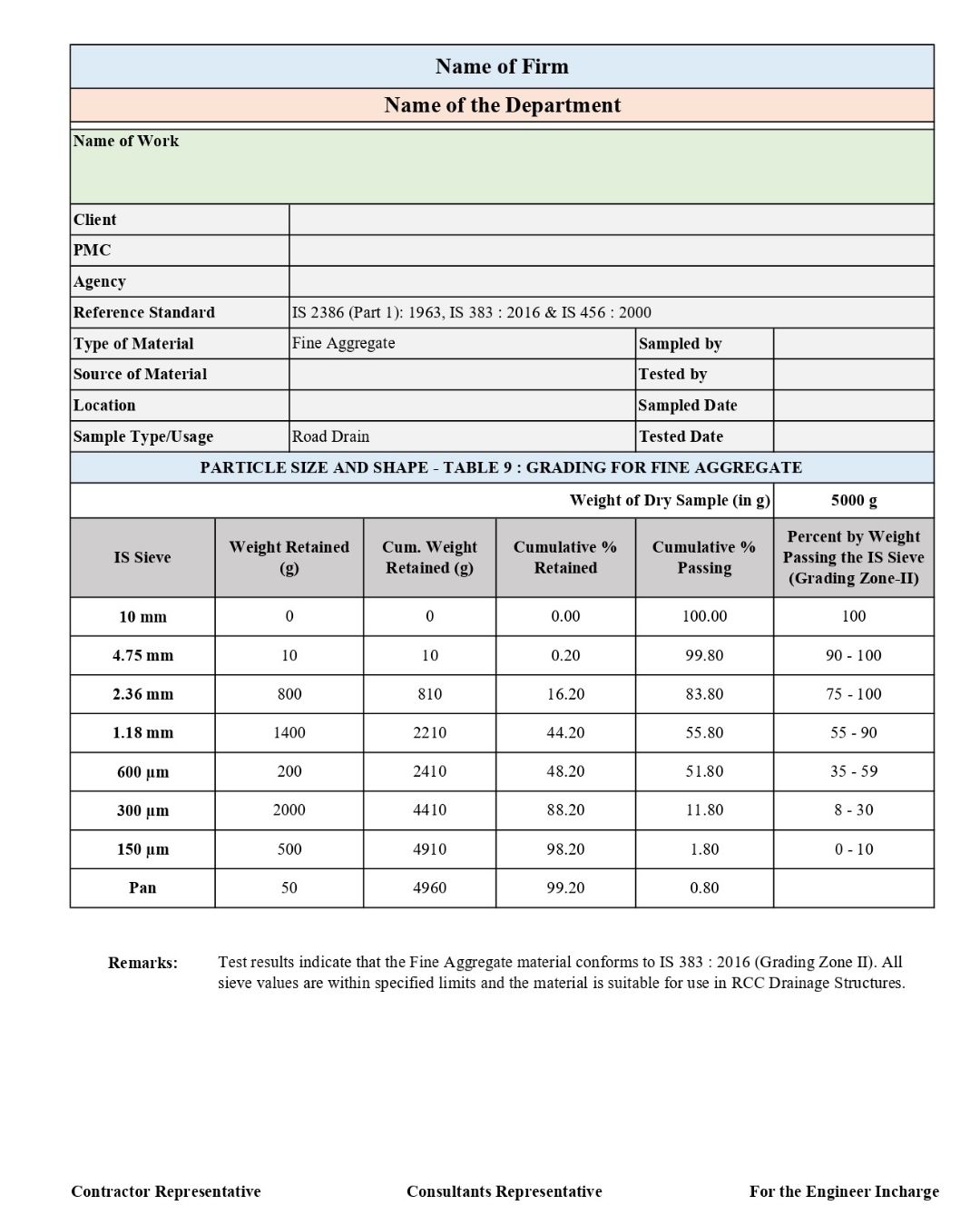

✔ Fine Aggregate Grading — Zone I, Zone II, Zone III & Zone IV

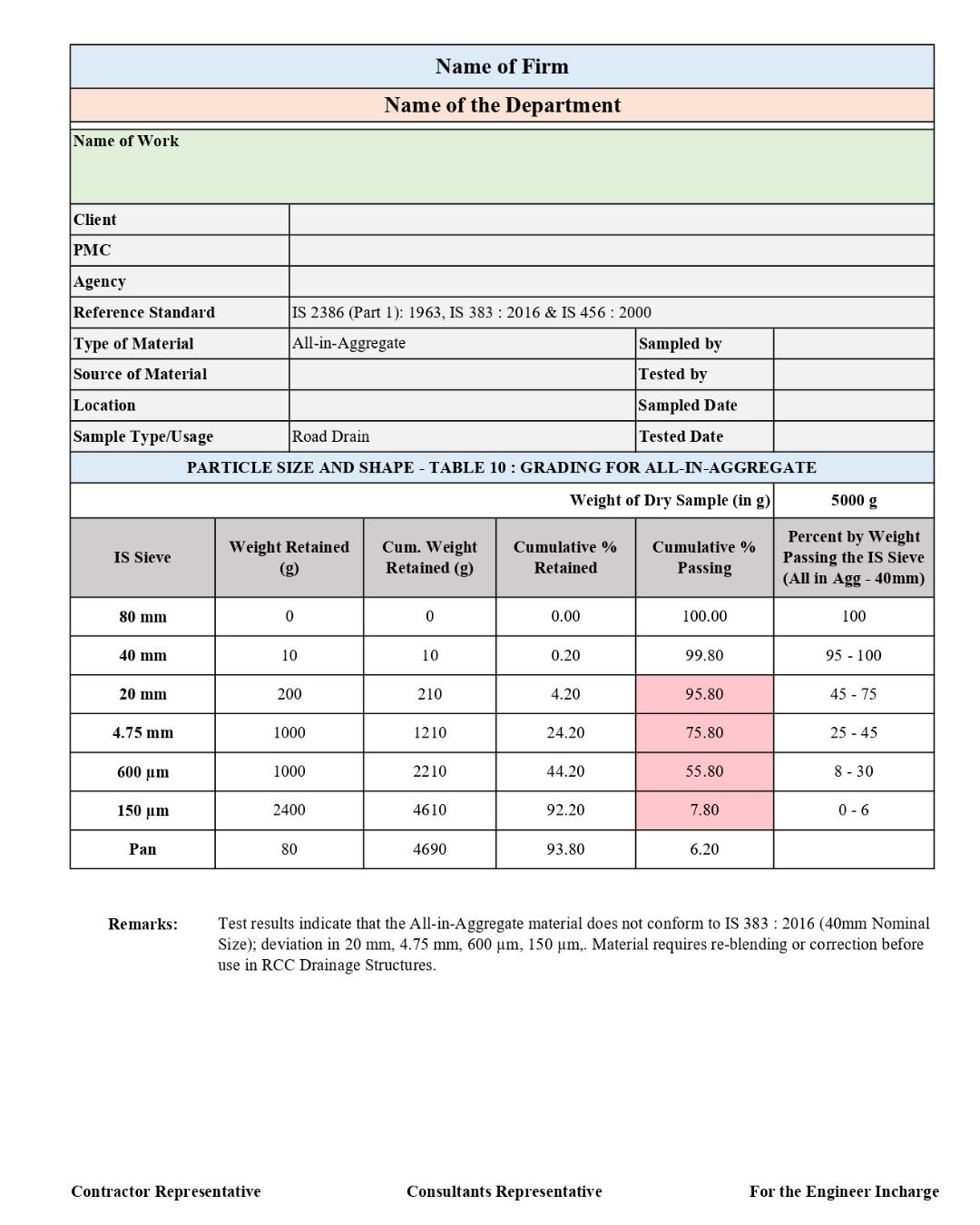

✔ All-In Aggregate Gradation — 40 mm & 20 mm
These formats support both individual grading verification and combined aggregate grading validation for mix designs and drainage concrete production.
All grading sheets include fields for:
• Laboratory name and sample ID
• Source quarry and supplier details
• Test dates and technician signatures
• Cumulative % passing by sieve size
• Acceptance comparison and final remark columns
This ensures each QC record is complete, traceable and ready for consultant and third-party review.
🧾 Compliance and Standards
The Drainage QC Aggregate Grading sheet aligns with:
🔹 BIS – Bureau of Indian Standards
🔹 Relevant IS Codes for Aggregate Grading
🚀 Who can use this Drainage QC Aggregate Excel
• Drainage construction contractors and EPC companies
• QC / QA engineers and laboratory technicians
• Concrete batching plants and aggregate suppliers
• PMC / Authority engineers verifying QC documentation
• Third-party quality inspection agencies
• DPR / Design and supervision consultants
• Government and private clients demanding traceable QC reporting
• Civil engineering students and training laboratories
🎯 Benefits of using this Drainage QC Sheet
✔ No need to prepare sieve tables or grading formats manually
✔ Ensures no QC record or grading checkpoint is missed
✔ Professional, consultant-friendly and audit-compliant layout
✔ Fully aligned with BIS / IS Code standards for aggregate grading
✔ Eliminates formatting errors and improves documentation traceability
✔ Enables faster approvals during inspections and RA bill certification
Version Type
| Version | Details |
|---|---|
| Basic | Empty Excel — manual entry version |
| Standard | Excel with formulas — Auto-Calculation, Notes & Auto Remarks |
| Premium | Includes both Basic + Standard files |
Download Information
After purchase, the file becomes available for instant download, and the download link remains active for 14 days. Once downloaded, the sheet can be used for lifetime without restrictions, and supports laptops, mobiles and tablets using any Excel-compatible application.
