Dense Bituminous Macadam (DBM)
Road QC DBM Test Report Excel is a complete, ready-to-use documentation sheet designed specifically for Dense Bituminous Macadam (DBM) layer quality control in highway and road construction projects. This professionally engineered QC format enables site engineers, contractors and consultants to record and validate all laboratory and field test results without formatting issues, calculation mistakes or missed checkpoints — ensuring smooth approval during inspections and technical audits.
Dense Bituminous Macadam is a high-strength bituminous base course placed below the bituminous wearing surface and is responsible for carrying the majority of traffic-induced stresses. It distributes vehicular loads and provides structural durability for the pavement system. Even minor deviations in gradation, aggregate shape, binder percentage or mix performance can lead to rutting, cracking and long-term pavement deterioration. This DBM QC sheet ensures every performance-critical property is thoroughly tested and traceably documented.
📌 Key Tests Covered in the DBM QC Excel
The sheet includes the complete set of essential DBM QC test formats, including:

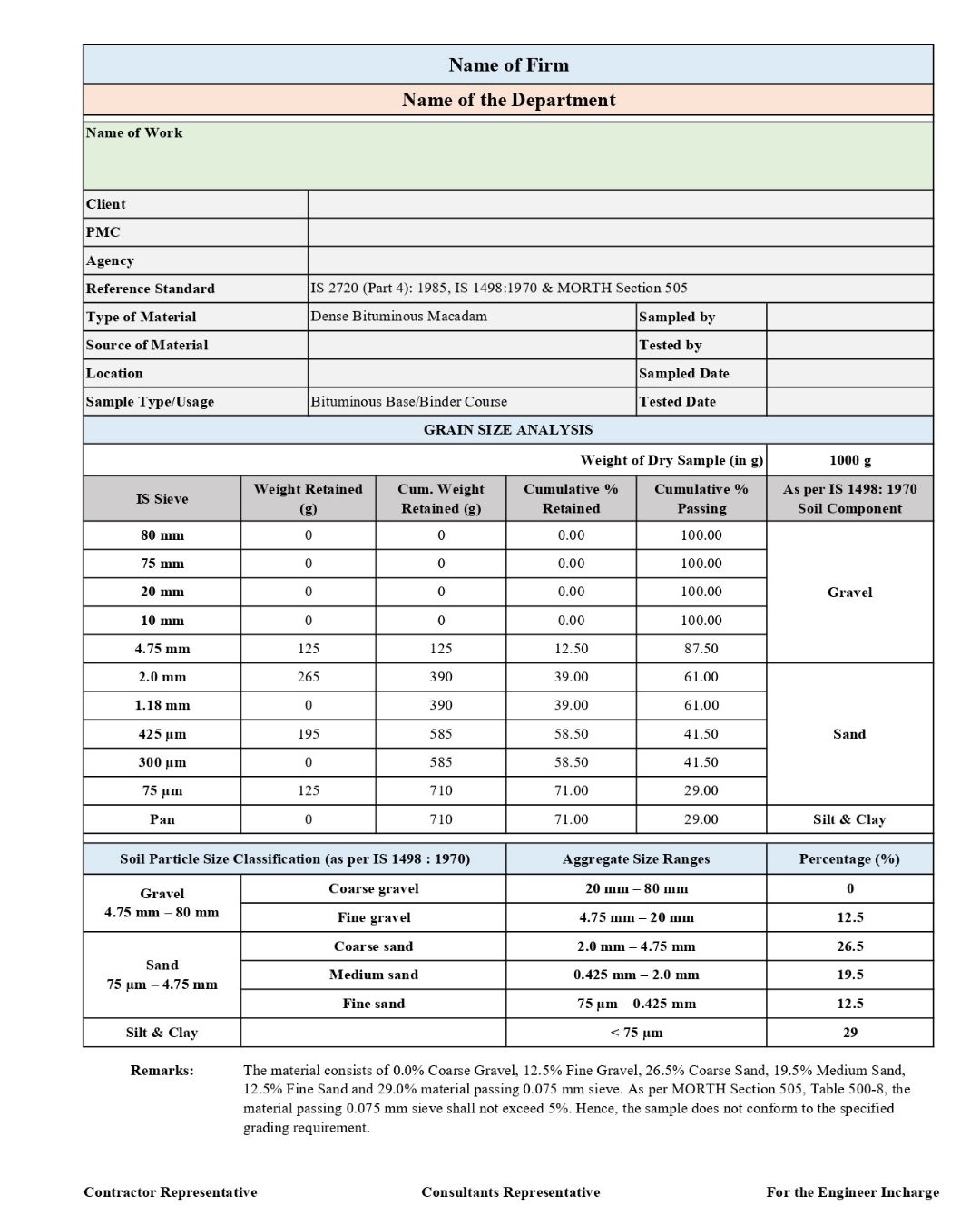

✔ Grain Size Analysis

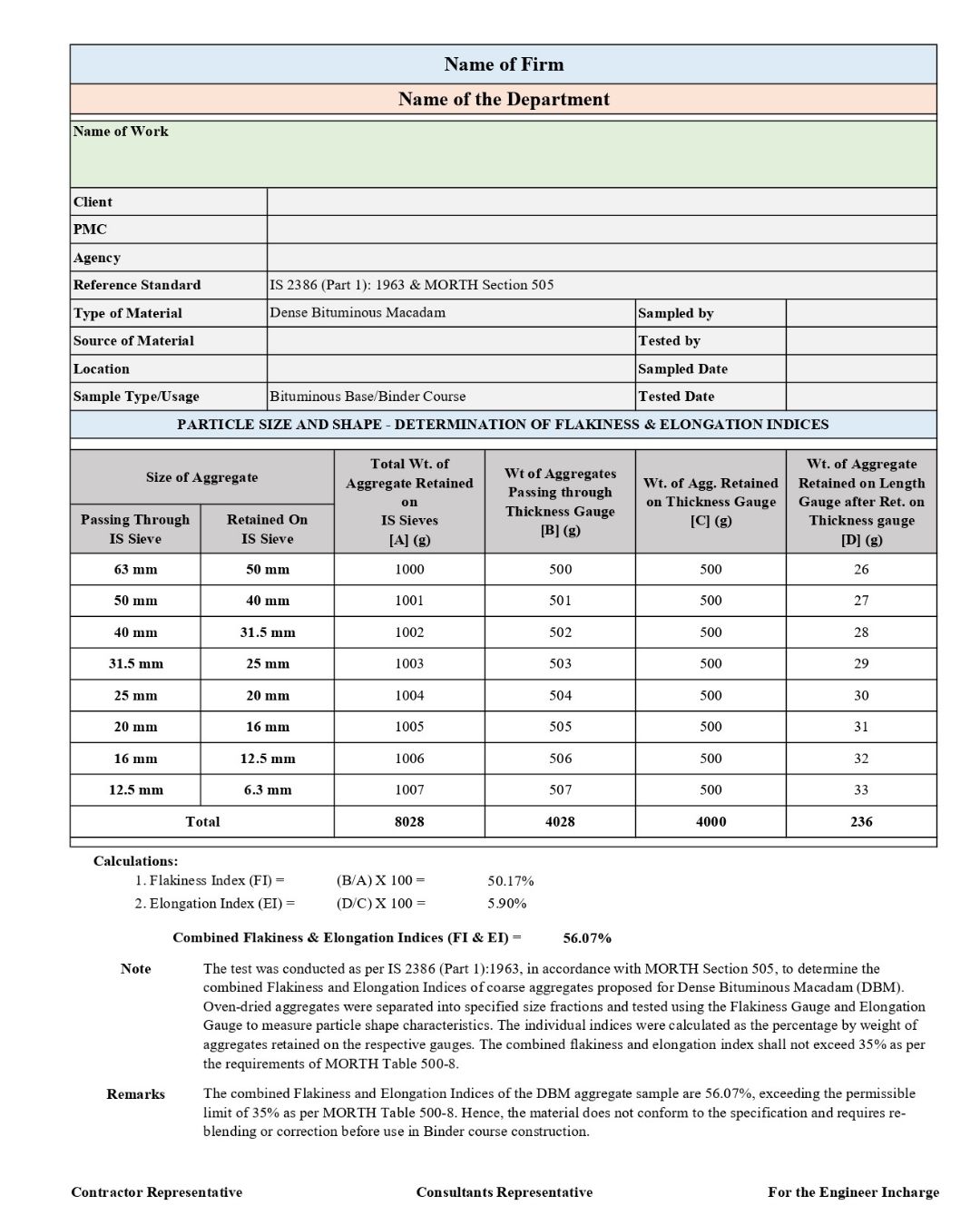

✔ Combined Flakiness & Elongation Index

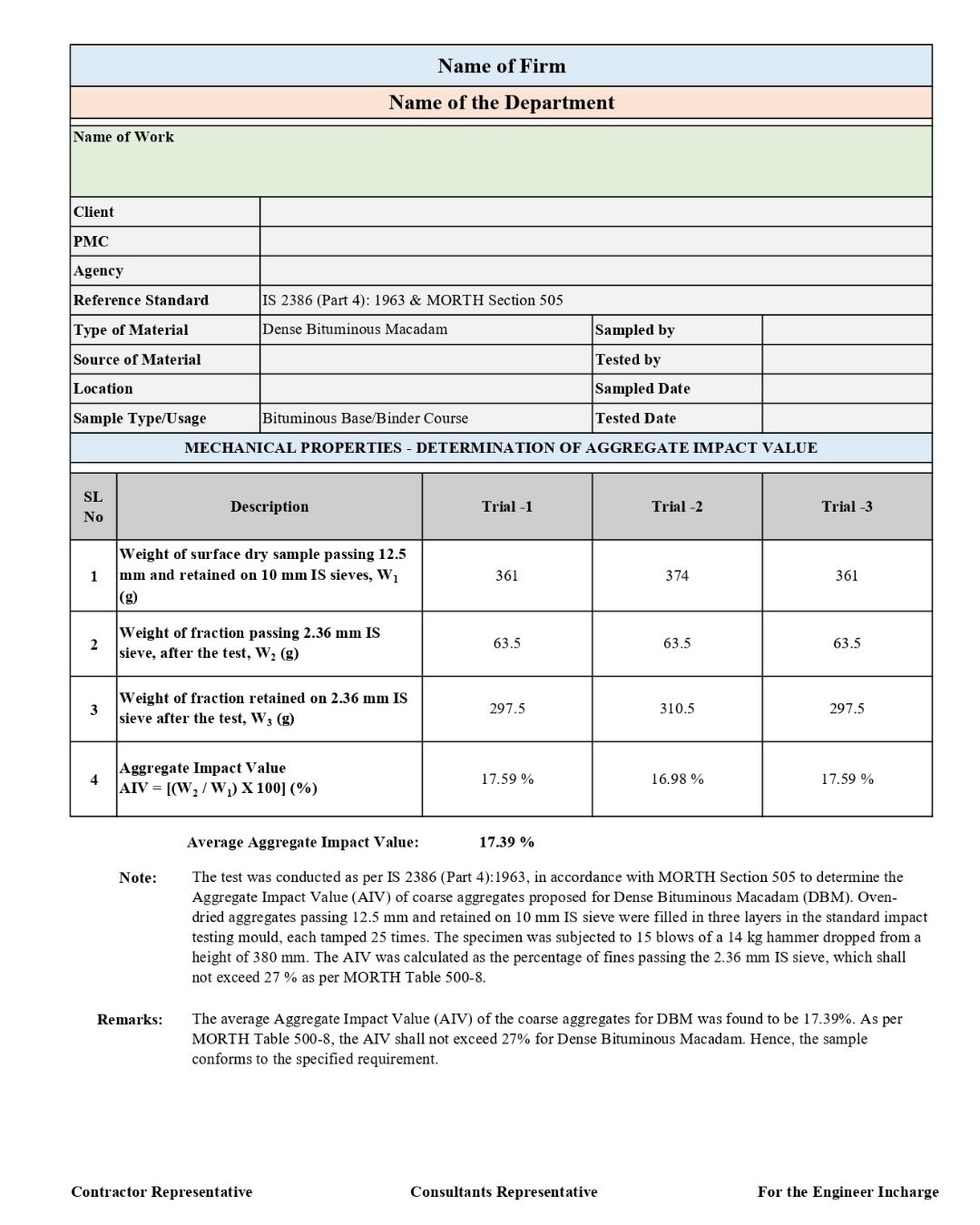

✔ Aggregate Impact Value

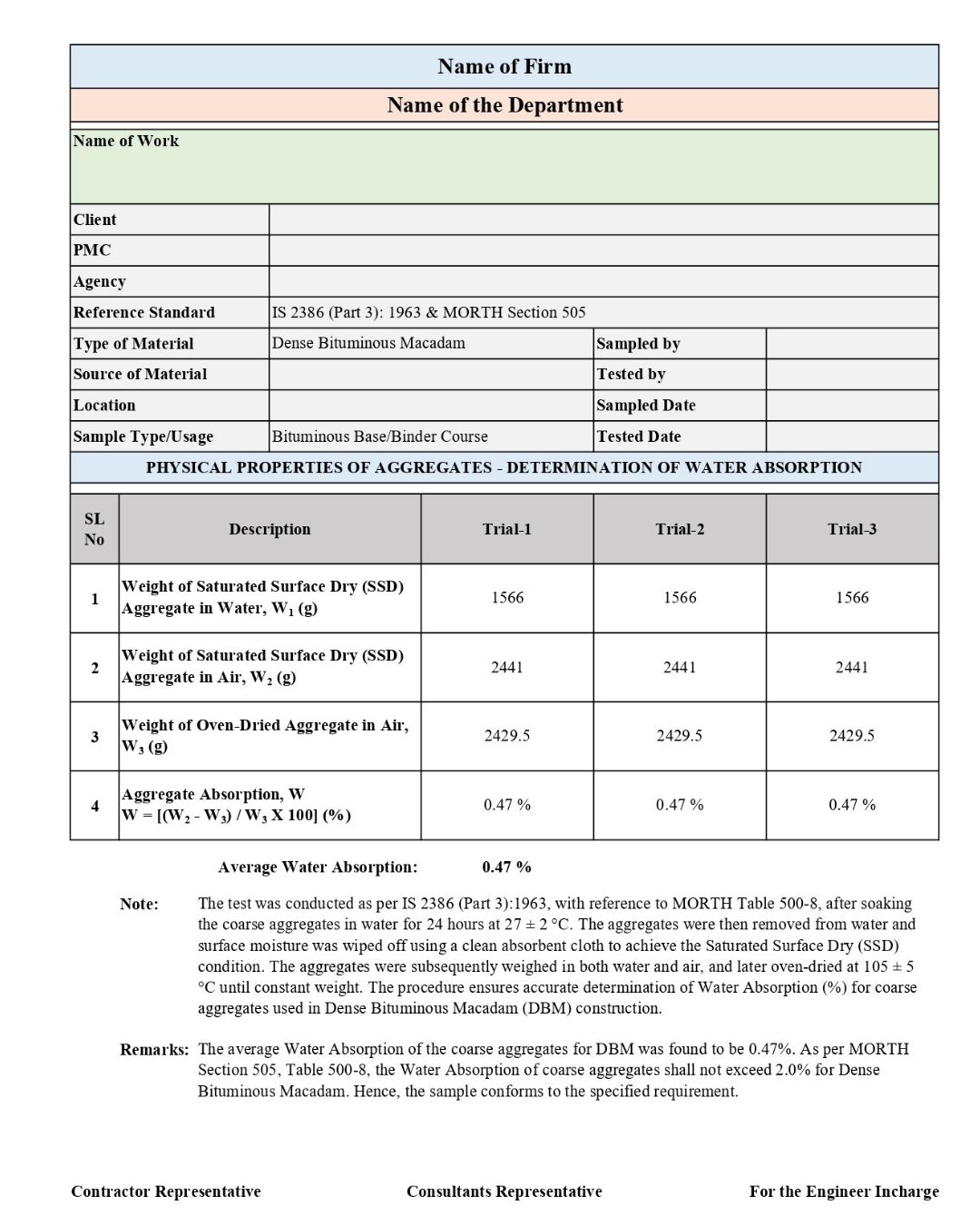

✔ Water Absorption
✔ Stripping Value

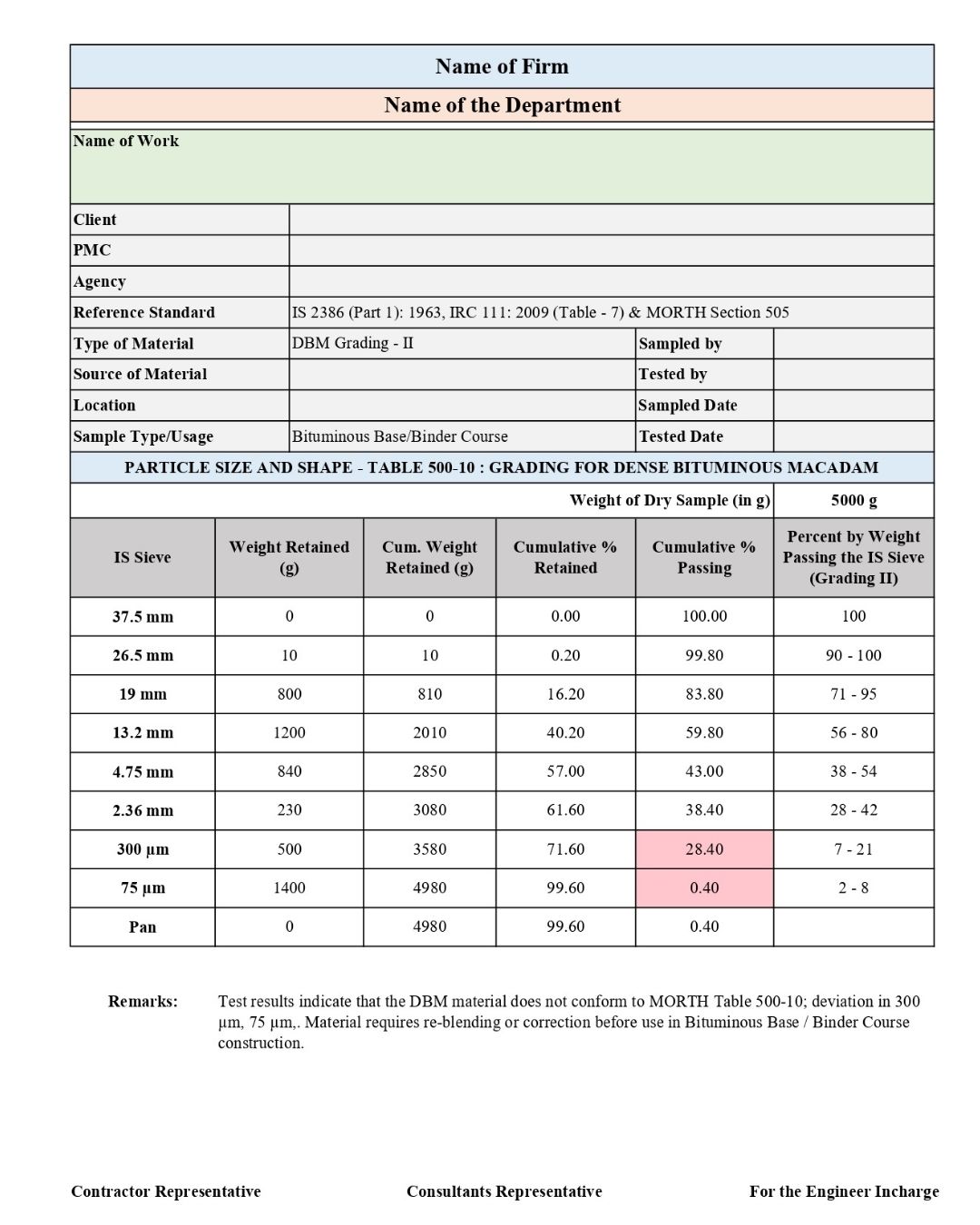

✔ Gradation (Grade I & Grade II)

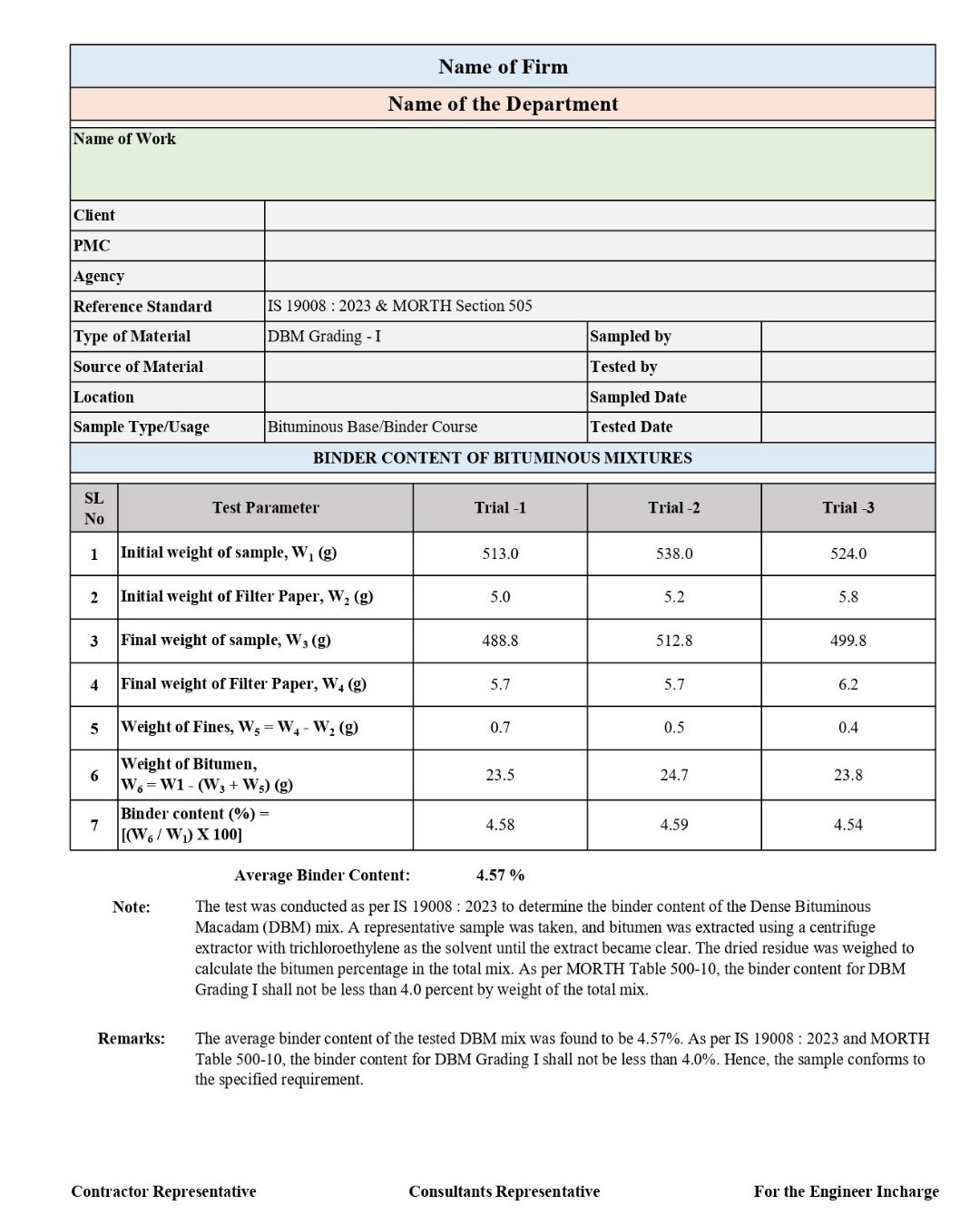

✔ Binder Content (Grade I & Grade II)
✔ Marshall Stability Test
All fields are pre-formatted to allow engineers to enter values directly and instantly generate a clean, consultant-friendly and audit-ready QC report.
🧾 Compliance and Standards
The DBM QC sheet aligns with:
🔹 MORTH – Specifications for Road & Bridge Works
🔹 IRC Guidelines for Bituminous Base Course Construction
🔹 Relevant IS Codes for bituminous mix and aggregate testing
This ensures seamless acceptance during:
• PMC / Authority Engineer inspections
• Third-Party Quality audits
• Client / Concessionaire reviews
• Running bill (RA bill) submissions
🚀 Who can use this DBM QC Excel
This QC documentation tool is suitable for:
• Highway EPC contractors
• QC / QA engineers
• PMC / Authority engineers
• Third-party inspection teams
• DPR / Design consultants
• Government and private clients
• Bituminous QC training for civil engineering students
🎯 Benefits of using this DBM QC Sheet
✔ Saves time with ready-to-use QC formats
✔ Ensures no test or QC checkpoint is skipped
✔ Professional, consultant-friendly and audit-compliant layout
✔ Fully aligned with MORTH / IRC QC requirements
✔ Eliminates formatting and calculation errors
✔ Helps speed up RA bill certification and reduces site-level queries
Version Type
This product is available in three variations:
| Version | Details |
|---|---|
| Basic | Empty Excel — manual entry version |
| Standard | Excel with formulas — Auto-Calculation, Test Notes & Auto Remarks |
| Premium | Includes both Basic + Standard files |
Download Information
After purchase, the file becomes available for instant download.
The download link remains active for 14 days, allowing you to access and save the QC sheet comfortably.
Once downloaded, the file can be used for lifetime without restrictions and operates smoothly on laptops, mobiles and tablets using any Excel-supported application.
Explore More QC Excel Templates
For Road, Building, Culvert, Drainage and other civil engineering QC test formats, browse the complete Civatrix QC library:
🔗 https://civatrix.com/shop/
Reference Standards and Official Guidelines
📌 MORTH Specifications & Circulars
🔗 https://morth.nic.in
📌 BIS – IS Codes for Bitumen & Aggregate Testing
🔗 https://standardsbis.bsbedge.com
