Water Supply QC – Aggregate Grading Test Report Excel
The Water Supply QC – Aggregate Grading Test Report Excel is a professionally structured quality control documentation tool developed specifically for aggregate grading verification in water supply and Water Treatment Plant (WTP) projects. This QC sheet supports accurate, standardized, and audit-ready recording of aggregate gradation results used in RCC, PCC, and masonry works for water-related infrastructure.
Aggregate grading plays a critical role in strength development, workability, impermeability, and durability of concrete used in water-retaining and water-conveying structures. Improper grading can lead to segregation, honeycombing, increased permeability, and reduced service life. This QC format ensures that all coarse and fine aggregates used in intake structures, jack wells, aeration tanks, clariflocculators, filter beds, clear water reservoirs, sumps, pump houses, and pipelines supports conform strictly to IS grading requirements.
The Excel sheet follows a clean, consultant-friendly, audit-ready layout, with predefined input fields, sieve-wise percentage passing tables, specification limits, and comparison columns. Auto-calculation and auto-remarks are available in the Standard and Premium versions, helping QA/QC teams reduce manual effort and eliminate documentation errors during inspections and audits.
📌 What’s Included in the Water Supply QC – Aggregate Grading Sheet
This QC format includes grading verification for all aggregate sizes commonly used in water supply and WTP construction works, as per IS standards.
📘 Water Supply QC – Aggregate Grading Table
| Sl. No. | Aggregate Grading Included | Description / Application |
|---|---|---|
| 1 | Single-Sized Coarse Aggregate | 63 mm, 40 mm, 20 mm, 16 mm, 12.5 mm & 10 mm – used for RCC, PCC, and mass concrete works |
| 2 | Coarse Aggregate Grading | 40 mm, 20 mm, 16 mm & 12.5 mm – for structural RCC components |

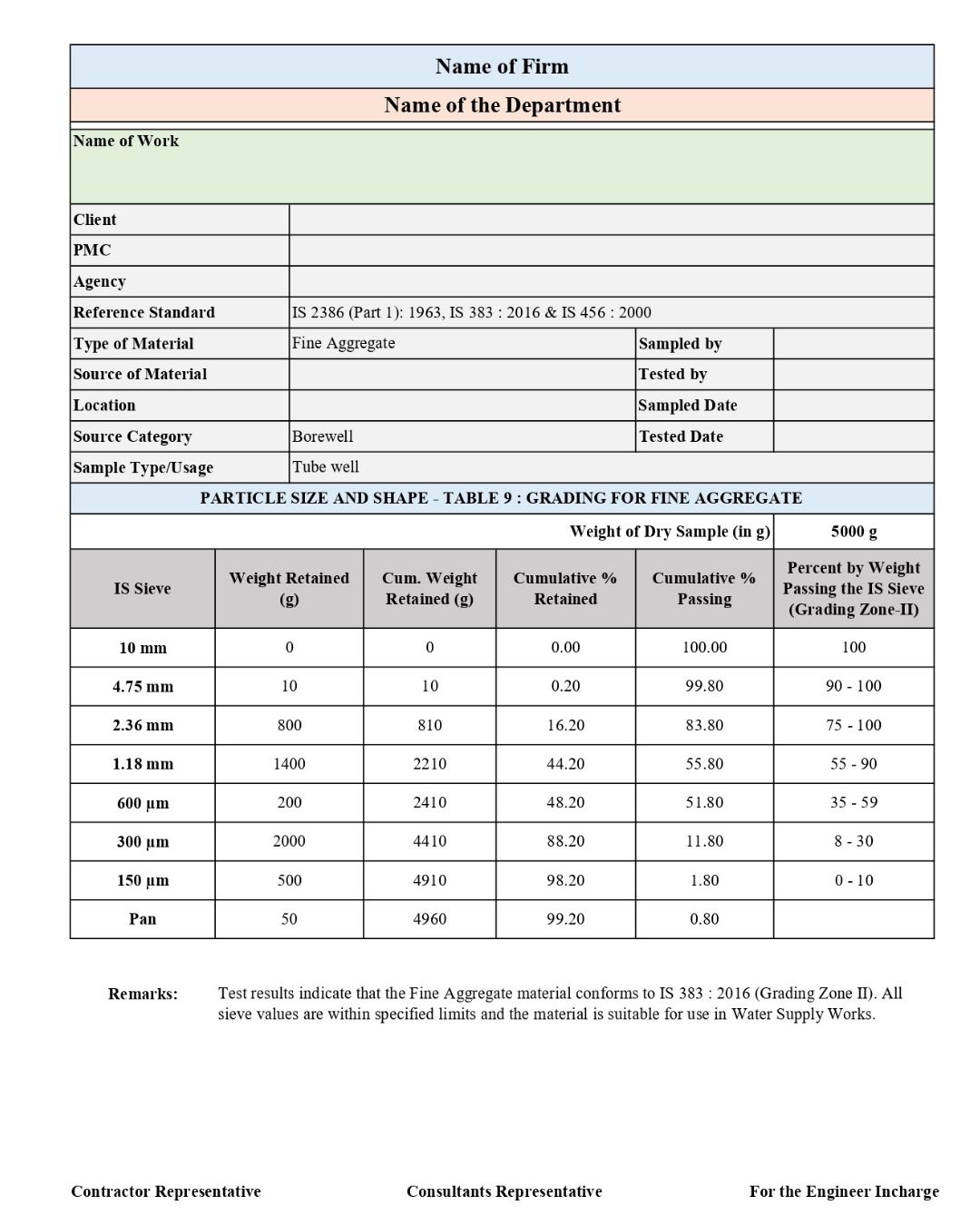

| 3 | Fine Aggregate Grading | Zone I, Zone II, Zone III & Zone IV as per IS 383 |

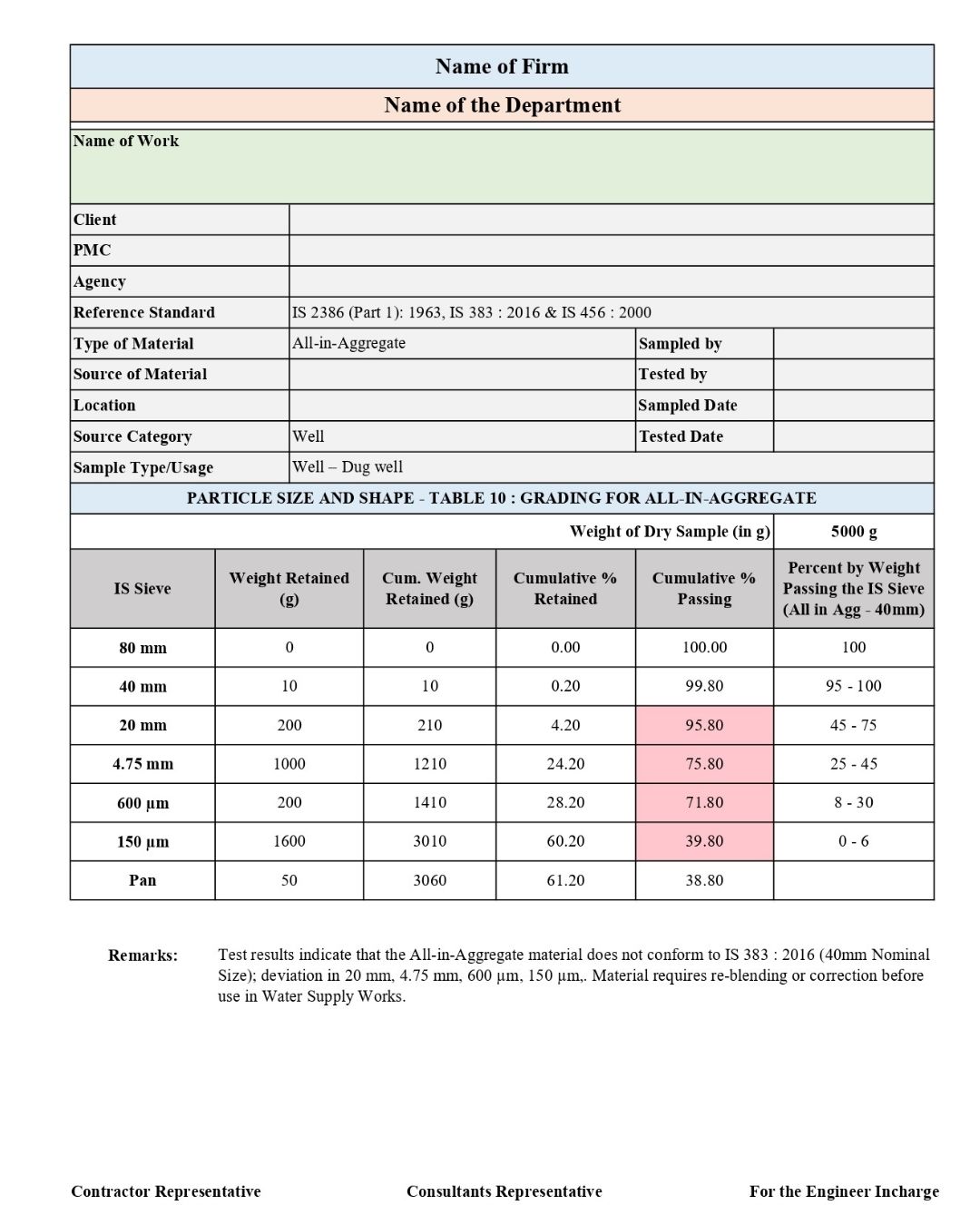

| 4 | All-In Aggregate Grading | Combined grading for 40 mm & 20 mm aggregates |
| 5 | Sand for Masonry & Plaster | Fine aggregate grading for mortar and plaster works |
🧾 Compliance and Standards
All grading checks and documentation align with:
🔹 BIS – Bureau of Indian Standards
🔹 Relevant IS Codes for Aggregate Grading
🚀 Benefits of the Water Supply QC – Aggregate Grading Sheet
✔ Ensures correct aggregate grading for water-retaining structures
✔ Improves concrete density and reduces permeability
✔ BIS-compliant and audit-ready documentation
✔ Clean, professional, consultant-friendly format
✔ Eliminates manual sieve analysis errors
✔ Speeds up inspection approvals and quality verification
✔ Ideal for water supply contractors, WTP consultants, and QA/QC engineers
Version Type
| Version | Details |
|---|---|
| Basic | Manual-entry QC format |
| Standard | Auto-calculation + Notes + Auto-Remarks |
| Premium | Includes both Basic + Standard versions |
Download Information
The file is available for instant download after purchase.
The download link remains active for 14 days.
Once saved, the sheet can be used for lifetime on any Excel-supported device.
